Voice Recorder in Windows Store Apps

Introduction
Today we are going to create a media recorder app in windows store apps. Using this app we can record your voice in multiple format and multiple quality and after record voice you can save its. To use this app you may need a Microphone to capture voice.
Step 1
Open Visual studio 2012 and start new Windows store apps project.
Step 2

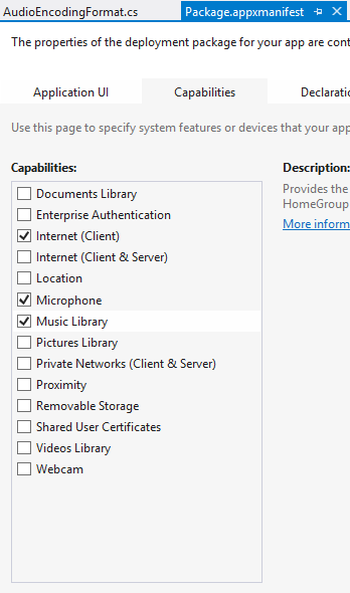

Go in solution explorer and double click on "Package.appxmanifest" to open its. In capabilities tab check to "Microphone" and "Music Library".

Step 3
In this step add the AudioEncodingFormat enum used by the application to allow the selection of an audio encoding format. Add a class name is "AudioEncodingFormat" and replace to all code with following code.

using System;

using System.Collections.Generic;

using System.Linq;

using System.Text;

using System.Threading.Tasks;



namespace MediaRecorder

{

    public enum AudioEncodingFormat

    {

        Mp3,

        Mp4,

        Avi,

        Wma

    };

    public static class AudioEncodingFormatExtensions

    {

        public static string ToFileExtension(this AudioEncodingFormat encodingFormat)

        {

            switch (encodingFormat)

            {

                case AudioEncodingFormat.Mp3:

                    return ".mp3";

                case AudioEncodingFormat.Mp4:

                    return ".mp4";

                case AudioEncodingFormat.Avi:

                    return ".avi";

                case AudioEncodingFormat.Wma:

                    return ".wma";

                default:

                    throw new ArgumentOutOfRangeException("encodingFormat");

            }

        }

    }

}

Step 4
Now go on "MainPage.xaml" and add following code.

<Page

    x:Class="MediaRecorder.MainPage"

    xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"

    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"

    xmlns:local="using:MediaRecorder"

    xmlns:d="http://schemas.microsoft.com/expression/blend/2008"

    xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"

    mc:Ignorable="d">



    <Grid Background="SteelBlue">

        <StackPanel VerticalAlignment="Center" HorizontalAlignment="Center">

            <StackPanel Orientation="Horizontal" Margin="0,10,10,10">

                <TextBlock>Select Audio Format</TextBlock>

                <ComboBox Name="AudioFormat" ItemsSource="{Binding}" MinWidth="230" Margin="10,0,0,0"

                          SelectionChanged="AudioFormat_SelectionChanged"></ComboBox>

            </StackPanel>

            <StackPanel Orientation="Horizontal" Margin="0,10,10,10">

                <TextBlock>Select Audio Quality</TextBlock>

                <ComboBox Name="AudioQuality" ItemsSource="{Binding}" MinWidth="230" Margin="10,0,0,0"

                          SelectionChanged="AudioQuality_SelectionChanged"></ComboBox>

            </StackPanel>

            <StackPanel Orientation="Horizontal">

                <Button Name="RecordBtn" Click="RecordBtn_Click" >Record</Button>

                <Button Name="StopBtn" Click="StopBtn_Click" >Stop</Button>

                <Button Name="SaveBtn" Click="SaveBtn_Click" >Save</Button>

            </StackPanel>

            <StackPanel  Orientation="Horizontal" Margin="0,10,0,0">

                <TextBlock>Duration</TextBlock>

                <TextBlock Name="Duration" Text="{Binding}" Margin="10,0,0,0"></TextBlock>

            </StackPanel>

        </StackPanel>

    </Grid>

</Page>

Step 5
Go on "MainPage.xaml.cs" page and following namespace.

using Windows.Media.MediaProperties;

using Windows.Storage;

using Windows.Storage.Pickers;

using Windows.Storage.Streams;

using Windows.UI.Popups;

using Windows.Media.Capture;

using System.Threading.Tasks;

Step 6
Here is complete "MainPage.xaml.cs" page code.

using System;

using System.Collections.Generic;

using System.IO;

using System.Linq;

using Windows.Foundation;

using Windows.Foundation.Collections;

using Windows.UI.Xaml;

using Windows.UI.Xaml.Controls;

using Windows.UI.Xaml.Controls.Primitives;

using Windows.UI.Xaml.Data;

using Windows.UI.Xaml.Input;

using Windows.UI.Xaml.Media;

using Windows.UI.Xaml.Navigation;

using Windows.Media.MediaProperties;

using Windows.Storage;

using Windows.Storage.Pickers;

using Windows.Storage.Streams;

using Windows.UI.Popups;

using Windows.Media.Capture;

using System.Threading.Tasks;



namespace MediaRecorder

{

    public sealed partial class MainPage : Page

    {

        public enum RecordingMode

        {

            Initializing,

            Recording,

            Stopped,

        };

        private MediaCapture CaptureMedia;

        private IRandomAccessStream AudioStream;

        private FileSavePicker FileSave;

        private DispatcherTimer DishTimer;

        private TimeSpan SpanTime;

        private AudioEncodingFormat SelectedFormat;

        private AudioEncodingQuality SelectedQuality;



        public MainPage()

        {

            this.InitializeComponent();

        }

        protected async override void OnNavigatedTo(NavigationEventArgs e)

        {

            await InitMediaCapture();

            LoadAudioEncodings();

            LoadAudioQualities();

            UpdateRecordingControls(RecordingMode.Initializing);

            InitTimer();

        }

        private async Task InitMediaCapture()

        {

            CaptureMedia = new MediaCapture();

            var captureInitSettings = new MediaCaptureInitializationSettings();

            captureInitSettings.StreamingCaptureMode = StreamingCaptureMode.Audio;

            await CaptureMedia.InitializeAsync(captureInitSettings);

            CaptureMedia.Failed += MediaCaptureOnFailed;

            CaptureMedia.RecordLimitationExceeded += MediaCaptureOnRecordLimitationExceeded;

        }

        private void LoadAudioEncodings()

        {

            var audioEncodingFormats = Enum.GetValues(typeof(AudioEncodingFormat)).Cast<AudioEncodingFormat>();

            AudioFormat.ItemsSource = audioEncodingFormats;

            AudioFormat.SelectedItem = AudioEncodingFormat.Mp3;

        }

        private void LoadAudioQualities()

        {

            var audioQualities = Enum.GetValues(typeof(AudioEncodingQuality)).Cast<AudioEncodingQuality>();

            AudioQuality.ItemsSource = audioQualities;

            AudioQuality.SelectedItem = AudioEncodingQuality.Auto;

        }

        private void UpdateRecordingControls(RecordingMode recordingMode)

        {

            switch (recordingMode)

            {

                case RecordingMode.Initializing:

                    RecordBtn.IsEnabled = true;

                    StopBtn.IsEnabled = false;

                    SaveBtn.IsEnabled = false;

                    break;

                case RecordingMode.Recording:

                    RecordBtn.IsEnabled = false;

                    StopBtn.IsEnabled = true;

                    SaveBtn.IsEnabled = false;

                    break;

                case RecordingMode.Stopped:

                    RecordBtn.IsEnabled = true;

                    StopBtn.IsEnabled = false;

                    SaveBtn.IsEnabled = true;

                    break;

                default:

                    throw new ArgumentOutOfRangeException("recordingMode");

            }

        }

        private void InitTimer()

        {

            DishTimer = new DispatcherTimer();

            DishTimer.Interval = new TimeSpan(0, 0, 0, 0, 100);

            DishTimer.Tick += TimerOnTick;

        }

        private void TimerOnTick(object sender, object o)

        {

            SpanTime = SpanTime.Add(DishTimer.Interval);

            Duration.DataContext = SpanTime;

        }

        private async void MediaCaptureOnRecordLimitationExceeded(MediaCapture sender)

        {

            await Dispatcher.RunAsync(Windows.UI.Core.CoreDispatcherPriority.Normal, async () =>

            {

                await sender.StopRecordAsync();

                var warningMessage = new MessageDialog("The media recording has been stopped because you exceeded the maximum recording length.", "Recording Stoppped");

                await warningMessage.ShowAsync();

            });

        }



        private async void MediaCaptureOnFailed(MediaCapture sender, MediaCaptureFailedEventArgs errorEventArgs)

        {

            await Dispatcher.RunAsync(Windows.UI.Core.CoreDispatcherPriority.Normal, async () =>

            {

                var warningMessage = new MessageDialog(String.Format("The media capture failed: {0}", errorEventArgs.Message), "Capture Failed");

                await warningMessage.ShowAsync();

            });

        }

        private async void RecordBtn_Click(object sender, RoutedEventArgs e)

        {

            MediaEncodingProfile encodingProfile = null;

            switch (SelectedFormat)

            {

                case AudioEncodingFormat.Mp3:

                    encodingProfile = MediaEncodingProfile.CreateMp3(SelectedQuality);

                    break;

                case AudioEncodingFormat.Mp4:

                    encodingProfile = MediaEncodingProfile.CreateM4a(SelectedQuality);

                    break;

                case AudioEncodingFormat.Wma:

                    encodingProfile = MediaEncodingProfile.CreateWma(SelectedQuality);

                    break;

                default:

                    throw new ArgumentOutOfRangeException();

            }

            AudioStream = new InMemoryRandomAccessStream();

            await CaptureMedia.StartRecordToStreamAsync(encodingProfile, AudioStream);

            UpdateRecordingControls(RecordingMode.Recording);

            DishTimer.Start();

        }

        private async void StopBtn_Click(object sender, RoutedEventArgs e)

        {

            await CaptureMedia.StopRecordAsync();

            UpdateRecordingControls(RecordingMode.Stopped);

            DishTimer.Stop();

        }

        private async void SaveBtn_Click(object sender, RoutedEventArgs e)

        {

            var mediaFile = await FileSave.PickSaveFileAsync();



            if (mediaFile != null)

            {

                using (var dataReader = new DataReader(AudioStream.GetInputStreamAt(0)))

                {

                    await dataReader.LoadAsync((uint)AudioStream.Size);

                    byte[] buffer = new byte[(int)AudioStream.Size];

                    dataReader.ReadBytes(buffer);

                    await FileIO.WriteBytesAsync(mediaFile, buffer);

                    UpdateRecordingControls(RecordingMode.Initializing);

                }

            }

        }

        private void AudioFormat_SelectionChanged(object sender, SelectionChangedEventArgs e)

        {

            SelectedFormat = (AudioEncodingFormat)AudioFormat.SelectedItem;

            InitFileSavePicker();

        }

        private void InitFileSavePicker()

        {

            FileSave = new FileSavePicker();

            FileSave.FileTypeChoices.Add("Encoding", new List<string>() { SelectedFormat.ToFileExtension() });

            FileSave.SuggestedStartLocation = PickerLocationId.MusicLibrary;

        }

        private void AudioQuality_SelectionChanged(object sender, SelectionChangedEventArgs e)

        {

            SelectedQuality = (AudioEncodingQuality)AudioQuality.SelectedItem;

        }

    }

}

Step 7
Now run you application. First time its will ask for allow permission to access Microphone. Click on "Allow".

Step 8
Select media format and quality and click on "Record" voice. After record voice you can save its on your system by click on "Save".
